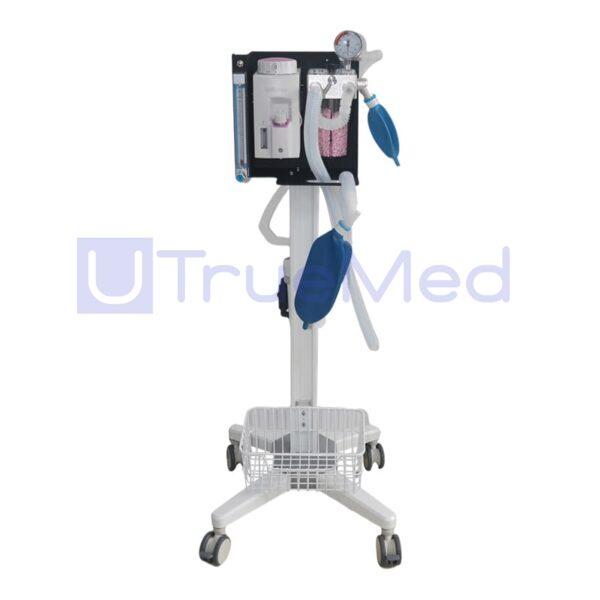

Veterinary Anesthesia Machine V100

Model:      V100
Product Features

It has delivery high precious veterinary anaesthesia equipment system . It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anaesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep and other animals in animal laboratory.

  • Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
  • Suitable for small animals, Non-breathing circuit(Jackson or Bains Absorber) is available
  • Selectatec-bar and quick change vaporizer mounting device
  • Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.
  • External and reusable soda lime canister, easily watch and replace soda lime.
  • With Oxygen flush function to ensure that clinical anesthesia demand and Oxygen supply demand.
  • Anaesthesia CO2 absorber assembly has no dead angle design, fast anesthesia, short recovery and high precision. The CO2 absorber supports both open loop and closed loop anaesthesia design and provides independent access .
  • Provide a special Pop-Off valve,Occlusion design, it can connected to the exhaust gas recovery system and provide a continuous 2 cmH2O negative pressure for the reaspirato airbag ,reducing valve to prevent pressure to hurt the animal, ensure the animal safety .
  • Provides an accurate oxygen flow meter with a display range of 0 to 4LPM
  • Vaporizer: the output concentration is not affected by the change of flow, pressure and temperature, accurate and reliable, equipped with safety locking device to prevent anesthetic leakage. Isoflurane,sevoflurane and halothane vaporizer are optional.
  • The hard aluminum solid shell is used, and the surface sanding treatment is adopted, so that the cleaning and disinfection are more convenient.
  • Visible inspiration and expiration valve
  • Specifically designed to accomodate low flow anesthesia

Additional information

Product Details:

Technical Specification
Application 0.5-100kg animal
Ventilation mode Closed,half-closed,half-open
Tidal volume 10-2000ml
Oxygen source pressure 0.25~0.65Mpa
Airway pressure scope 030~60CMH2O
Flow Control 0-4L/min
Oxygen Flush 35L/min~75L/min
Pop adjust scope Directs the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.
Inspiration impedance ≦0.6Kpa
Expiration impedance ≦0.6Kpa
Absorption tank capacity 700ml
Monitoring Airway pressure,Gas source pressure monitoring
I:E As doctor need
BPM As doctor need
