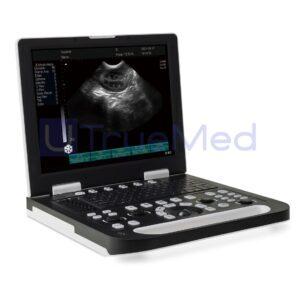

Veterinary Ultrasound Machine V500
Black and White Ultrasound Scanner YC-V500
Buy UTrueMed’sVeterinary Ultrasound Machine V500 and improve animal patient care with exceptional image quality that allows you to visualize and assess internal structures with precision and clarity. The V500’s powerful imaging platform revolutionizes diagnostic capabilities and lets you makeinformed patient care decisions. The 15″LCD offers detailed and accurate imaging for confident diagnoses. It features four encoders and a knob design for quick and convenient operation. It has a 256 frames movie playback function letting you play frame by frame. The portable design allows you to move this equipment and conduct ultrasound even in mobile settings. Make confident decisions and improve patient care with V500.
Additional information
Product Details:
Product Features
- 15 inches LCD display zone for large image size, with high quality.
- Probe Interface: Dual probe interface, with automatic identification function
- ARM platform, fast computing, HD imaging
- Abundant probe sets, suitable for different parts.
- Battery Capacity: Independent battery compartment /removable lithium battery /5200 mAh
- Four encoders, knob design, quick and convenient operationSupport multi-language switching
- Movie playback: 256 frames, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement
- Measurement: Professional measurement software;
- Host size: 360mm (L) x 355mm ( W) x 65mm (H)
| Screen size | 15 |
| Screen Resolution | 1024*768 |
| Number of physical channels | 32 |
| Array element | Conventional probe 96. Rectal probe 128. |
| System | ARM |
| Storage space | 16G |
| Number of probe interfaces | 2 Probe Interfaces |
| Language | English, Spanish, Russian, French, Portuguese |
| External interface | VGA*1,USB*2,Power connector*1，Video interface*1 |
| Supported printer types | Video printer (Mitsubishi, Sony) |
| Ultrasonic mode | B,2B,4B,M,B/M |
| optional probe | 3.5Mhz convex probe,7.5Mhz linear probe,6.5Mhz micro convex probe,4.0Mhz rectal convex probe,6.5Mhz rectal linear probe,6.5Mhz handle probe for sheep,3.5Mhz back fat probe |
| Movie playback | 256 frames |
| Grey scale | 256 |
| Image mirroring | yes |
| Specialist Measurement Package | Animal specific software measurement package |
| Dynamic Range | 0-135dB |
| Gain range | 0-100dB |
| Body Marks | ≥98 |
| Puncture Guide | yes |
| Function of rock positioning and dynamic target tracking | yes |
| Pseudo-color | 8 types |
| Blind area | ≤4 |
| Maximum display depth | 300mm |
| Geometric accuracy | transverse ≤5%, longitudinal ≤5% |
| Resolution | lateral ≤2mm, axial ≤1mm |
| Display magnification | 16 |
| Battery capacity | Built-in 6400mAh lithium battery |
| Battery life | >4 hours |
| Host weight | 4.2kg |
| Gross weight | 7.5kg |
| Package Size | 50*50*23cm |
| Host size | 360*355*65mm |
